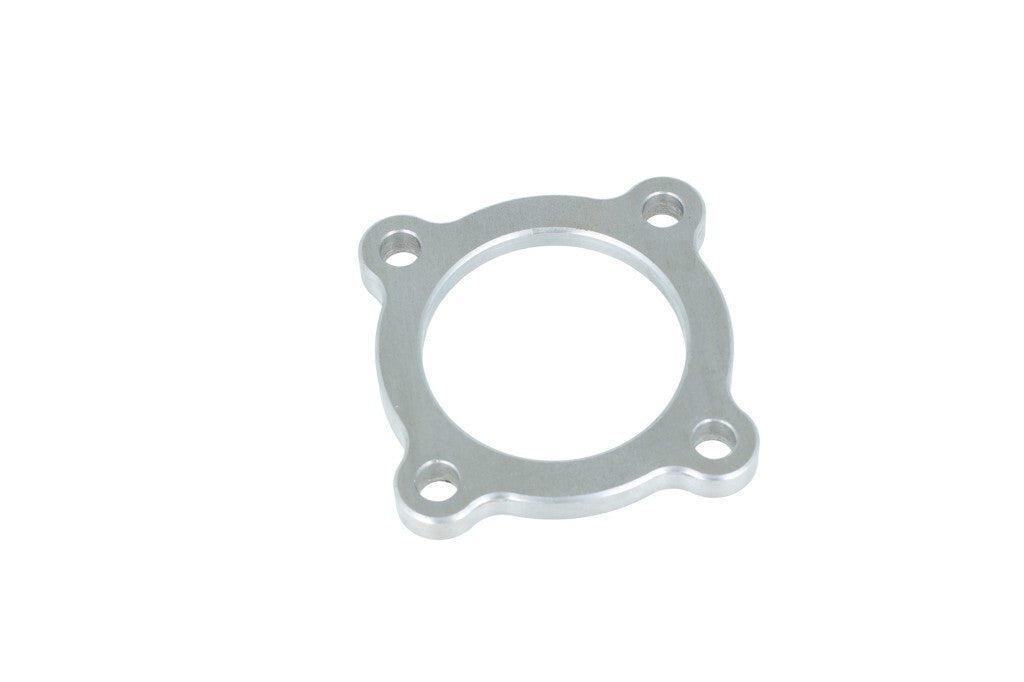

Downpipe Flange 4-bolt 63mm

Flange for fabrication of the downpipe

Premium mild steel downpipe flange

This flange is used to fit the downpipe to the turbocharger. at the turbine outlet. All flanges are perfectly even and fit 100%. They are cut by water-jet or CNC milled to prevent warping.

Material: steel
Material thickness: 10mm
Total dimensions: 106mm (outside diagonally). 76mm (outside without connections)
Dimensions cut-out: 63.5mm (groove for pipe). 60mm (inner diameter pipe)
Inner Diameter: 63mm
Hole distance: 89mm (diagonal)
Thread: for M8
Extras / Features: no threads! Holes 9mm!

Fur / Fits:
Turbooutlet 4-bolt / 63.5mm

Garrett GT2554R (GT25R) with T31 turbine housing (T3)
Garrett GT2560R (GT28R) with T31 turbine housing (T3)
Garrett GT2860RS (GT28R) with T3 4-bolt turbine housing as well as KKK K24/26
Garrett GT2871R with T3 4-bolt turbine housing as well as K24/26 (Audi S2 und RS2) turbine housing
Garrett GT2876R (GT25/40R) with T3 4-bolt as well as K24/26 turbine housing
Garrett GT3071R with T3 4-bolt turbine housing as well as K24/26 (Audi S2 und RS2) turbine housing
Garrett GT3076R (GT30R oder GT30RS) with T3 4-bolt as well as K24/26 turbine housing
Garrett GT3082R (GT30/40R) with T3 4-bolt turbine housing as well as KKK K24/26
Garrett GT3582R (GT35/40R oder GT35R) with T3 4-bolt as well as K24/26 turbine housing

Garrett T3 with 4-bolt turbine housing (mostly without internal wastegate)
Garrett T3 Super 60 with 4-bolt turbine housing (mostly without internal wastegate)
Garrett T3/T4 with 4-bolt turbine housing (mostly without internal wastegate)

If you are unsure whether this flange fits to your turbocharger. just draw a sketch of your turbine entry flange and hand it to us for comparison.



  • Usage: Turbocharger to Downpipe
  • Flange type: 4-Bolt 63.5mm
  • Availability: order on customer request
  • Material: steel
  • Model: single flange

    •

    Feel free to contact us at info@mlperformanceeu.com should you wish to double check!



    To ensure the part(s) you have ordered fits your vehicle. we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



    TURBOZENTRUM-402965
