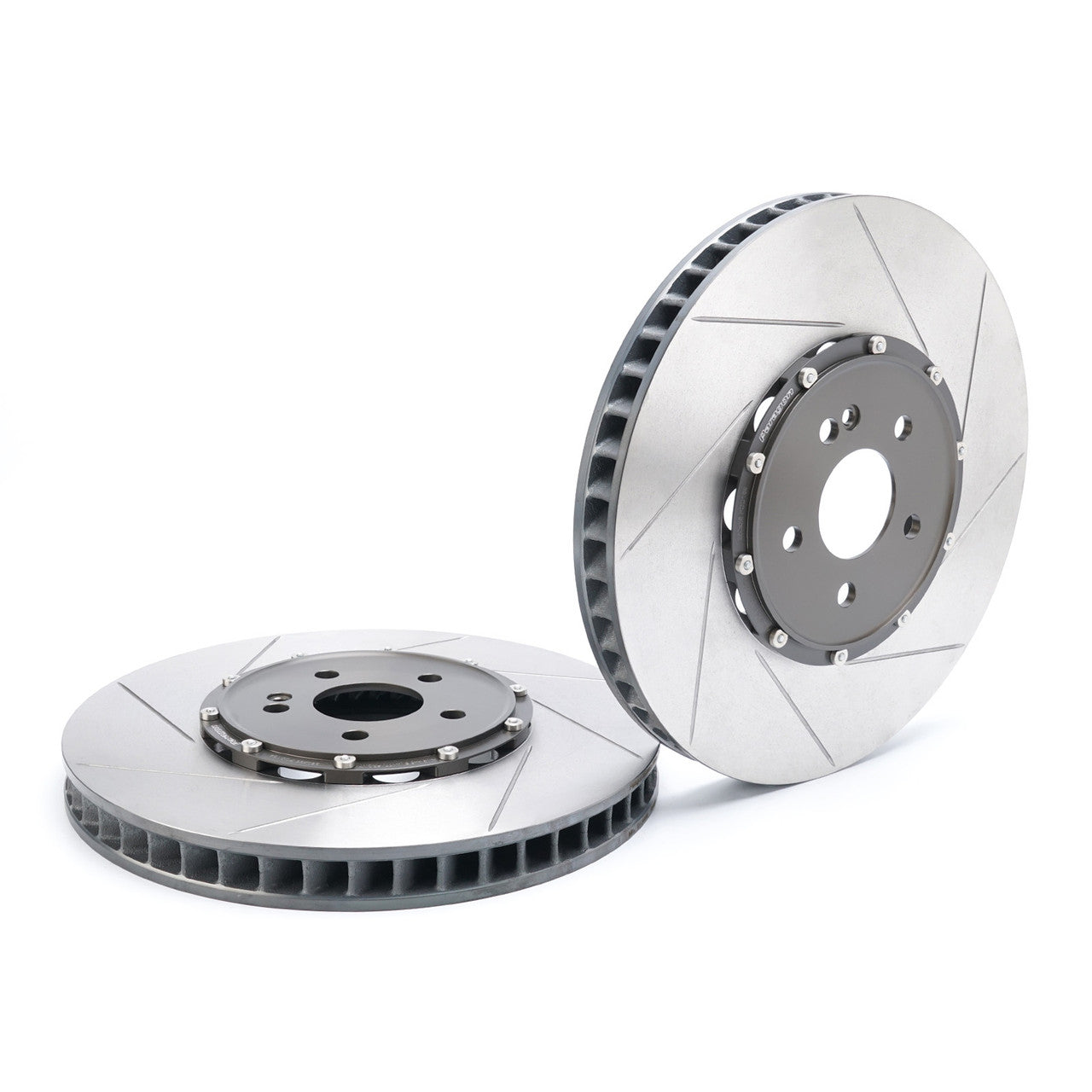

Paragon 2-piece Brake Discs (Front Pair) for Mercedes-Benz AMG A45 S (W177)

Paragon Performance 2-piece Brake Discs offers superior braking and cooling efficiency optimized for track and race applications. It features directional ventilation vanes to create suction, turbulence, and guides cool air through the rotor for improved heat dissipation and increased resistance to cracking under harsh track condition.

Made of CM-250 special formulated high carbon alloy cast iron, it allows for an optimal bite, thermal characteristics, high-temperature strength and durability. Rotor rings are heat treated to release stress in the rotor to avoid deformation and vibration then turned by state-of-the-art CBN surface machining to ensure better break-in with new brake pads.

Vibration is reduced as the rotor lateral run-out is kept within 0.03mm and well-balanced: variations are kept within 2 grams. All rotors went through rigorous quality control procedures and inspections to ensure the rotors are fit for their purposes. The floating 2-piece design allows thermal expansion of the rotor while minimizing deformation and ensuring the rotor is self-centered with the pads. A slotted rotor improves braking consistency by maintaining a clean contact surface and dissipate heat generated and gases released when the pads come into contact with the rotors. Slotted rotors have a superior advantage over blank rotors in wet or raining conditions by preventing water films to form between the brake pad and rotor surface. Weighing less than most O.E. rotors while maintaining proper thermal capacity, our 2-piece rotors improves overall handling by saving unsprung mass.

Aluminum hats are CNC machined from lightweight 6061-T6 aerospace grade aluminum for high strength and durability under extreme track conditions, then Mil-spec Type III black hardcoat/hard anodized to increase resistance to wear and corrosion. Unnecessary materials are taken out from the aluminum hats for maximum weight savings while maintaining proper structural integrity.

*Hard anodized (clear) hats will not discolor under extreme heat, and are highly recommended for track/race applications. Black hardcoat anodized (dyed) hats are more prone to discoloration under extreme heat (> 500F / 260C).

• Direct bolt-on without any modifications and designed to work flawlessly with OEM ABS and brake system while maintaining factory brake bias. Compatible with OEM brake pads or aftermarket pads with the same pad depth (D)
• Directional ventilation vanes for optimal cooling performance, runs up to 30% cooler than O.E. rotors and increase cooling efficiency by up to 30%
• Floating 2-piece design
• Minimizing brake fade & judder during extended sessions
• Rotor to hat mounting system: D-Bobbin (long) - 10 bolt
  Each rotor weighs 24.6 lbs (11.2 kg) - save 7.4 lbs of unsprung weight per rotor vs. OEM while maintaining proper thermal capacity


Direct replacement of: OEM Mercedes part # 177-421-00-00

Specifications:

• Diameter: 360mm (14.17")
• Thickness (new): 36mm (1.42")
• Thickness (min.): 34mm (1.34")
• Type: 2-piece floating
• Face Pattern: Slotted
• Vented / Solid: Directional ventilated
• Number of Vanes: 48
• Hat Material: 6061-T6 aluminum
• Friction Ring Material: CM-250 high carbon alloy cast iron
• Rotor Finish: CBN turned
• Weight (per rotor): 24.6 lbs (11.2 kg)

• One pair of Paragon Performance 360mm x 36mm (14.17” x 1.42”) 2-piece rotor assemblies with black hard coat/hard anodized 6061-T6 aerospace grade aluminum hats, stainless steel bobbins, and anti-rattle clips (assembled and ready to install)



• Detailed installation manual

• 2019+ AMG CLA 45 (C118) w/ OEM red calipers

• 2020+ AMG A45 S (W177) 4-matic+

• 2020+ AMG GLA 45 (H247) w/ OEM red calipers

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

PARAGON-P2R.128.360.360.18900.08.01.01.F (Black Hard Coat Anodized Hat)

PARAGON-P2R.128.360.360.18900.08.01.02.F (Hard Anodized Hat)

Manufactured by

Paragon
