PROUDLY DESIGNED AND BUILT IN THE USA
FINALLY a low cost 330mm Rear Big Brake Kit (BBK) for your B6-B7 S4. This is the BEST Rear BBK we make to compliment our massive 350mm 6-piston Cayenne Caliper BBK we offer for the front. This kit cannot be bought anywhere else since we make the custom, lightweight rotor ring and hat in house. These parts are not available from any other source. Our kit includes a JHM exclusive park brake spring relocation kit to allow the largest rotor possible on a stock wheel. The factory park brake spring limits the rear rotor diameter (it protrudes outboard and would hit a stock wheel on a rotor of this size).

SPECIFICATIONS:Stock vs. JHM
- Rotor OD: Stock B6-B7 S4 = 300mm (11.8 inches) JHM = 330mm (13.0 inches) - More than 1 inch LARGER than stock better braking performance.
- Rotor Weight: Stock = 13.0 lbs (each), JHM = 11.5 lbs (each) - A total of 3 lbs LIGHTER with IMPROVED braking performance.
- Rotor Cooling Air-gap: Stock = 8.5mm (.334 inches), JHM = 13mm (.511 inches) - LARGER for better cooling
- Rotor Cooling Center Fin Design: Stock = Straight Fin, JHM = Airfoil - MORE EFFICIENT for better cooling

- Rotor Thickness: Stock = 22mm (.866 inches), JHM = 22mm (.866 inches) - SAME
- Bolt pattern: - SAME (fits like an OEM rotor would)INCLUDES:

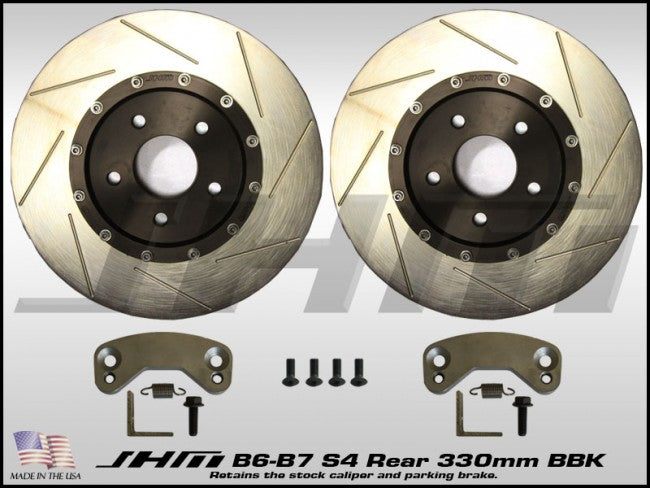

2 - JHM 2-piece Lightweight 330mm Rear Rotors.
2 - Caliper adapter brackets made from Stainless Steel
4 - Caliper adapter bracket mount bolts
2 - Park brake springs
2 - Park brake spring brackets
2 - Longer caliper to caliper hanger bolts for Park brake spring brackets
-Works with stock sized, replacement B6-B7 S4 rear brake pads. Such as OEM, Hawk, PBR, Mintex, Etc. We sell pads as well, if you do not see the ones you want contact us for details.
Rotor Ring Specifications:
We worked closely with a racing brake manufacturer that supplies many NASCAR racers and a couple major brake kit companies. Due to their expertise we chose to have them build us the outer rings to our specs to fit the B6-B7 S4. The rotor rings feature 12 attachment points for durability and strength.Center Hat Specifications:
We CNC machine the Aluminum center hats in house for their recommended materials and thicknesses for durability. 12 attachment points for durability and strength. We also engrave JHM in them in 3 locations equal from each other, it looks clean and doesn't jump out or look tacky.
NOTE: With the installs we have done we have found that our slot design is whisper quiet.Note - This brake upgrade fits under the Stock B6-S4 "Avus" style, 18" inch wheels. It also fits under both stock B7 S4 18" wheel designs. Even more room under most aftermarket 18" wheels and larger.INSTALLATION NOTES AND PICTURES
