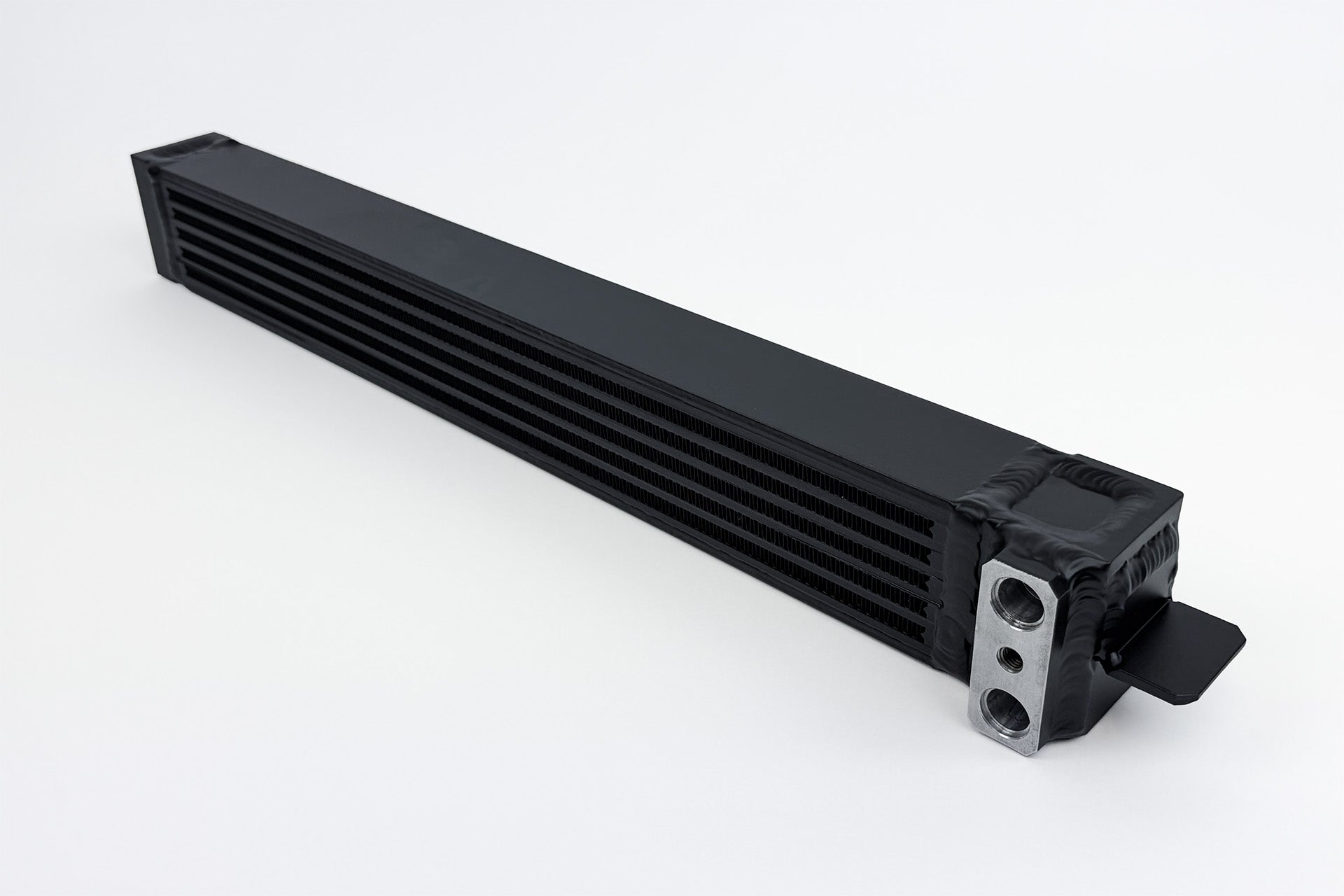

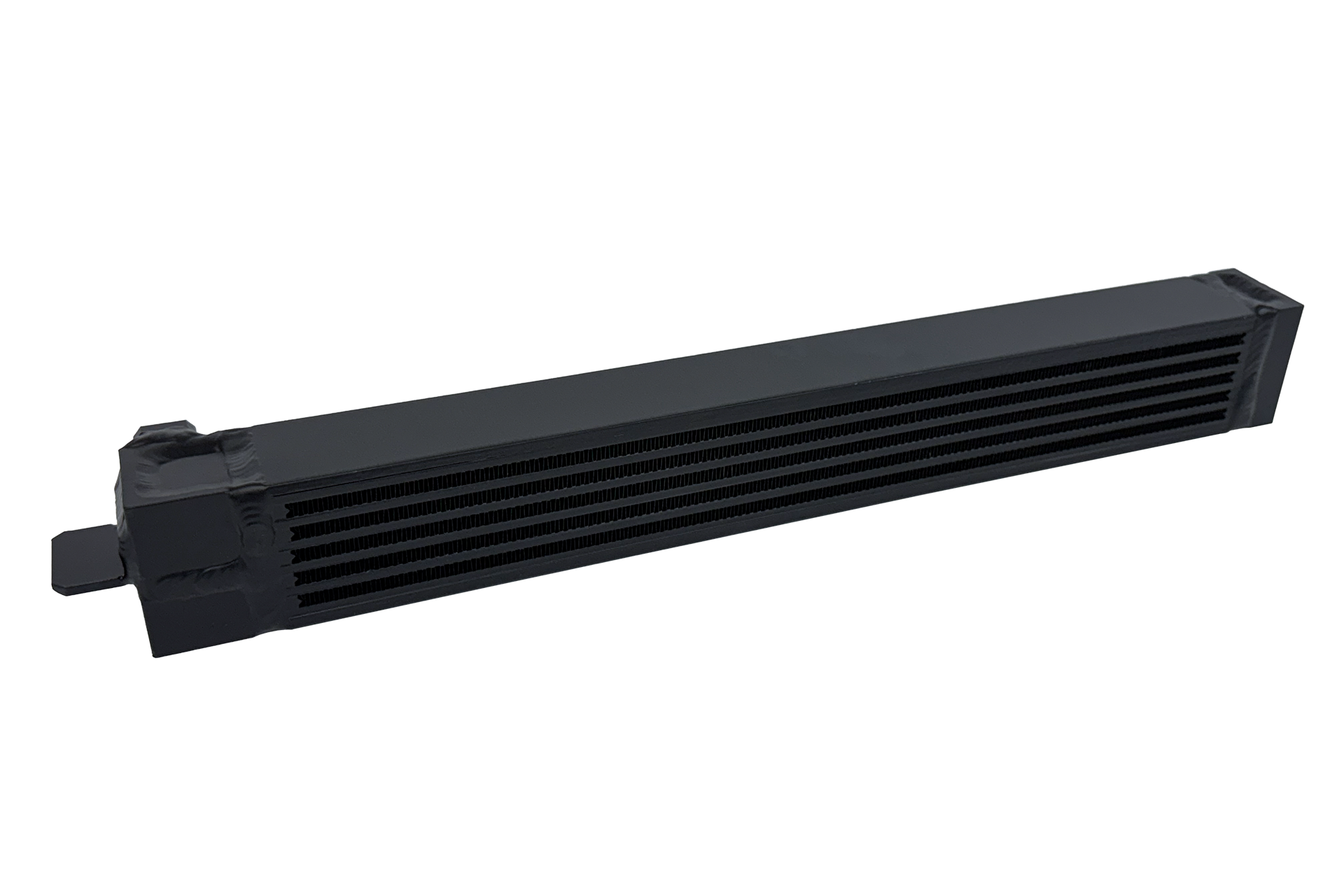

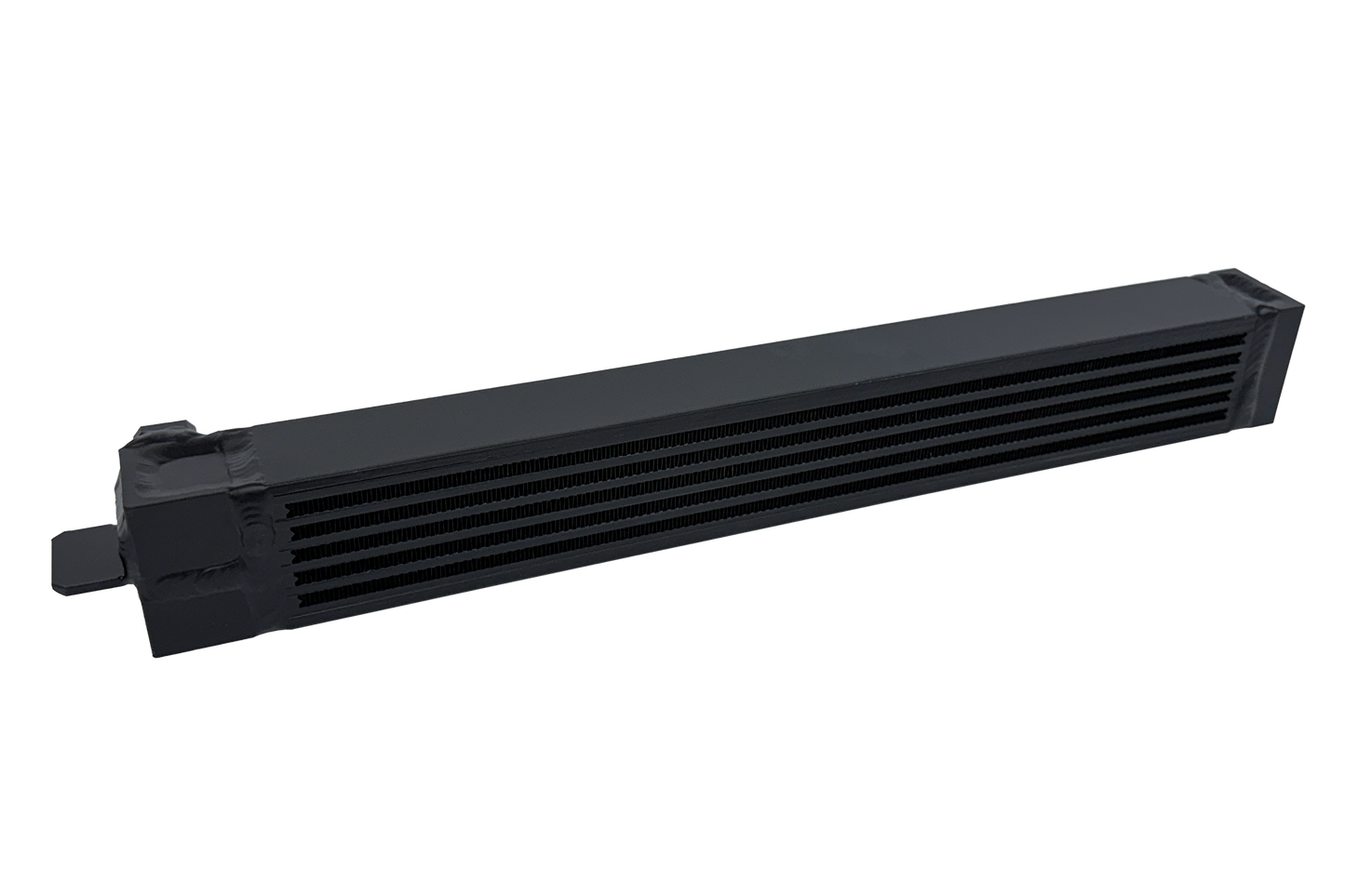

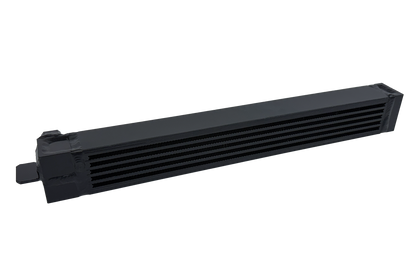

The E36 Euro Spec Oil Cooler is exactly what it sounds like. E36 M3’s in Europe came equipped with an oil cooler that mounted under the radiator and was a popular upgrade for E36 owners in the US. Unfortunately, BMW discontinued the oil cooler and they have become harder and harder to find. BimmerWorld reached out to CSF to design a replacement unit that would fit exactly like the factory unit but perform even better.

• Unique Top/Bottom Dual-Pass Design for Maximum Surface Area and Flow

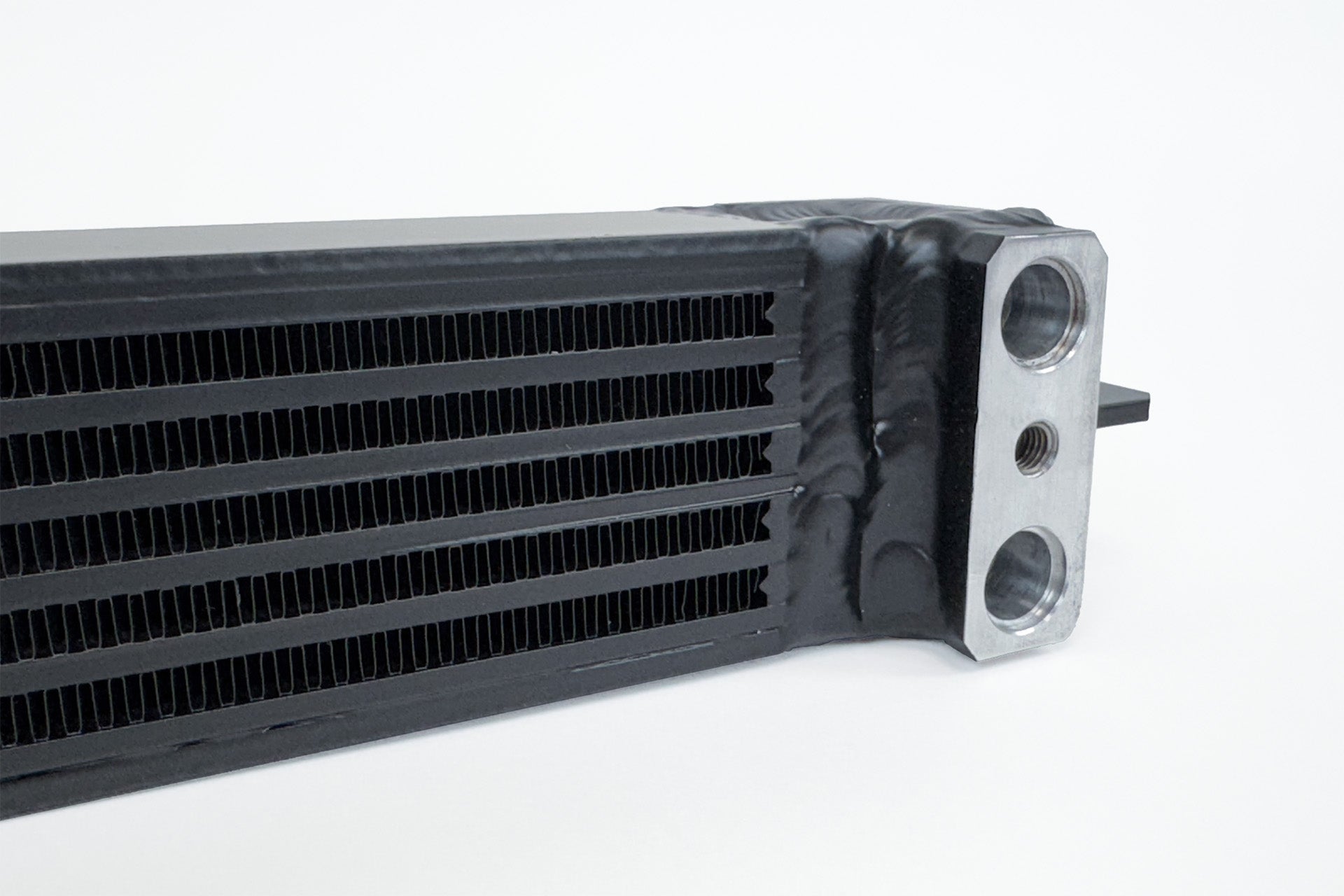

• Fully TIG-Welded Extruded End Tank Design for Superior Reliability & Durability
• Turbulated Heavy-Duty Bar/Plate Design for the Most Reliable & Durable Oil Cooler Available
• 6 Rows of Maximum Cooling with a High Density Multi-Louvered Fin Pitch Design
• Designed to Work with OE & CSF All-Aluminum Radiator (CSF #3054)
• OE Style Black Finish
• Accepts Factory Oil-Line Connections
• Accepts Factory Oil-Line Connections
• Mounts using OE Brackets
• Uses OE E36 Euro Spec Oil Cooler Lines (Pipe) – BMW PN: 17212227235

Applications:

• 1992-1999 BMW E36 3-Series (including M3)


OEM Part Numbers:

• BMW: 17212244084
  • Superseded:
    • BMW: 17212244083


To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

CSF-8301

Manufactured by

CSF Radiators
