Following an extensive development process, AIRTEC Motorsport are proud to launch our oil cooler kit aimed at FK2 Civic Type R owners who require the ultimate cooling package to maintain steady running temperatures on track or fast road use.

The Challenge
When modifying the FK2 Civic Type R to increase power and torque, an unavoidable by-product is the additional heat level that's transferred to the car's cooling system, which leads to hotter operating temperatures. During sustained hard use, this can become a substantial issue, as temperatures can increase enough to trigger the ECU's safety features, reducing torque or even putting the car into a limp mode.

The Solution

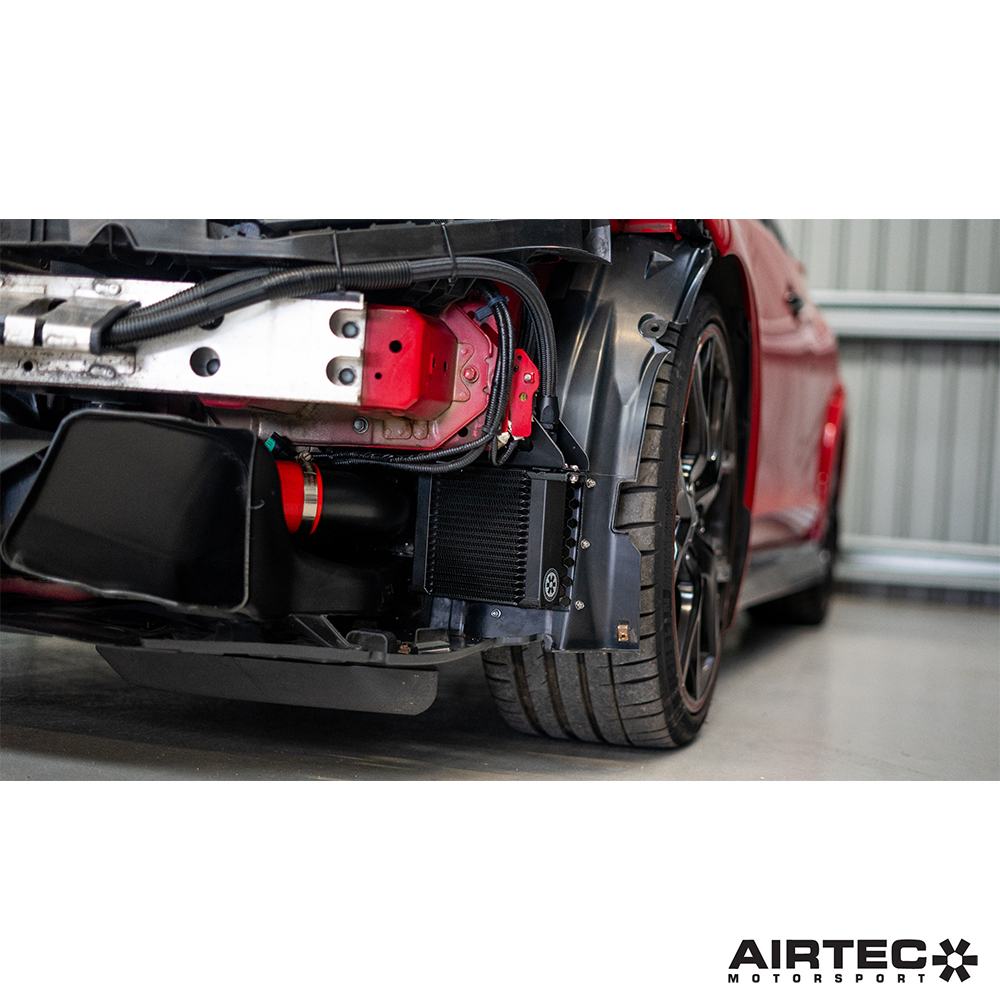

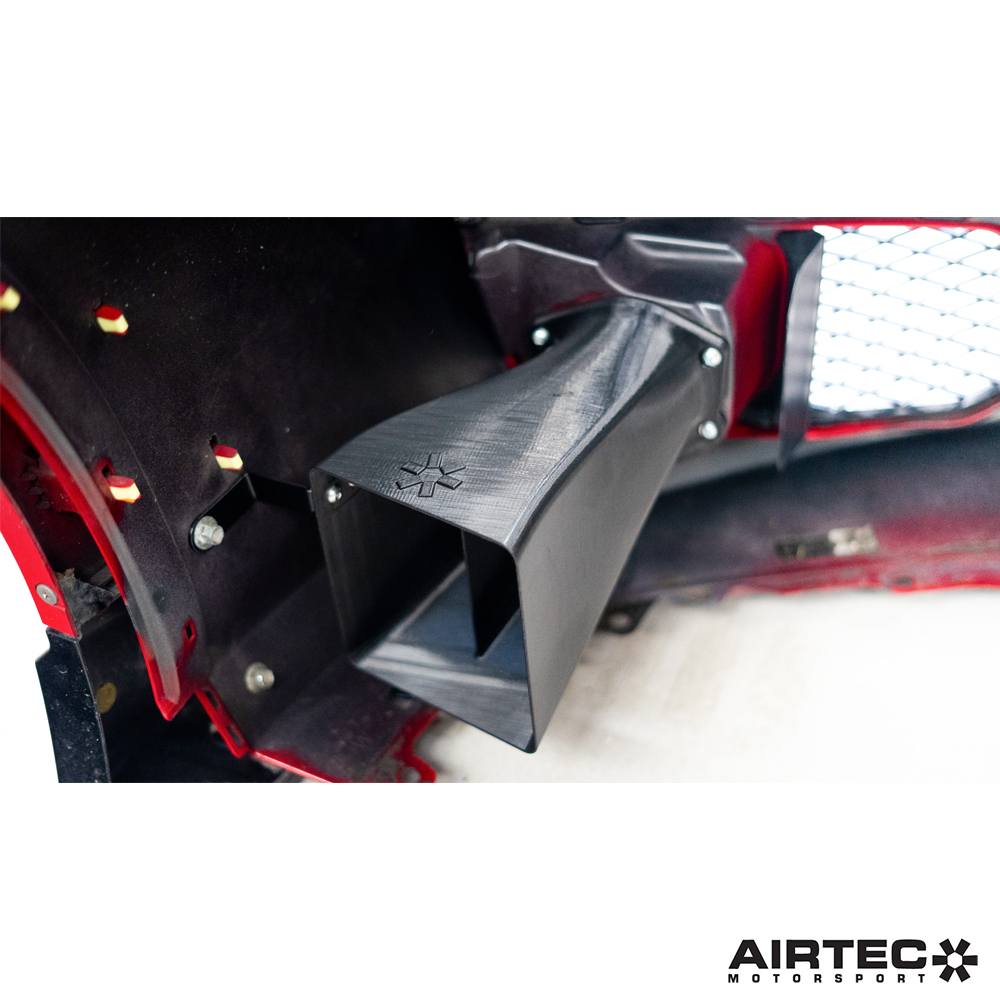

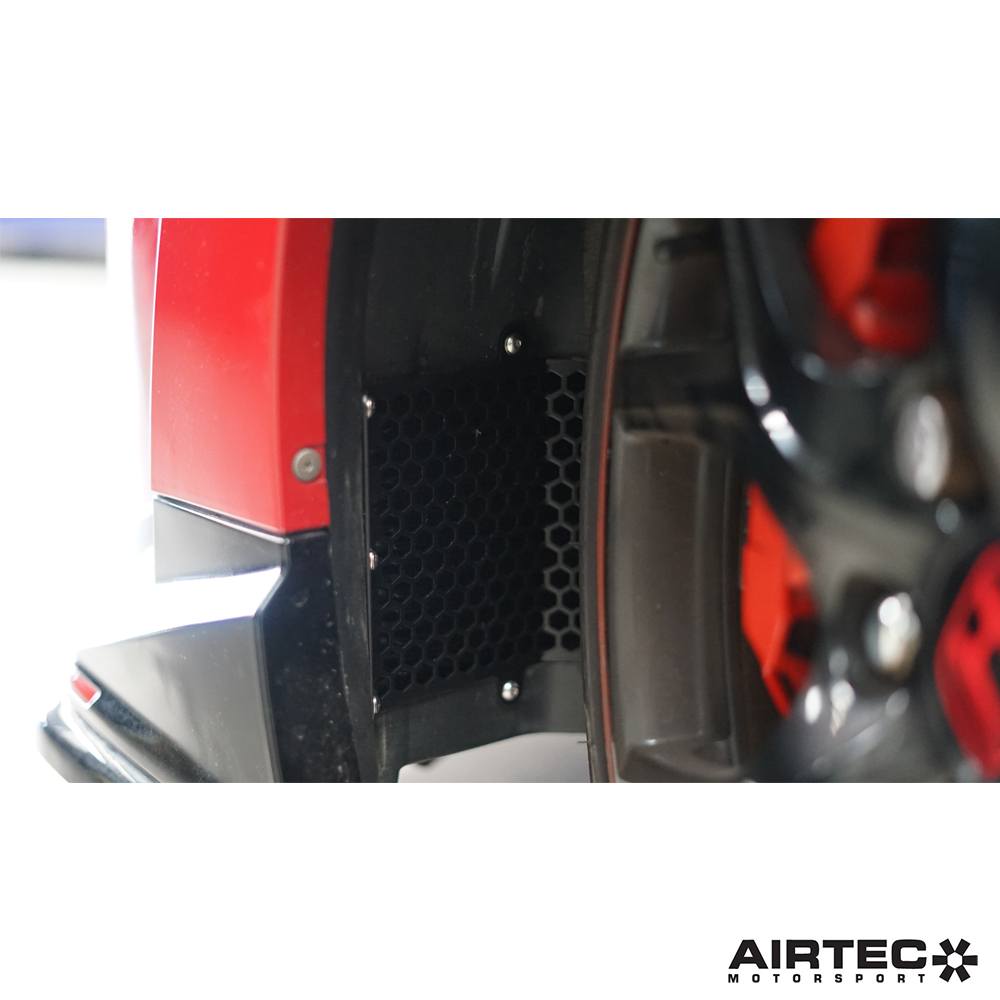

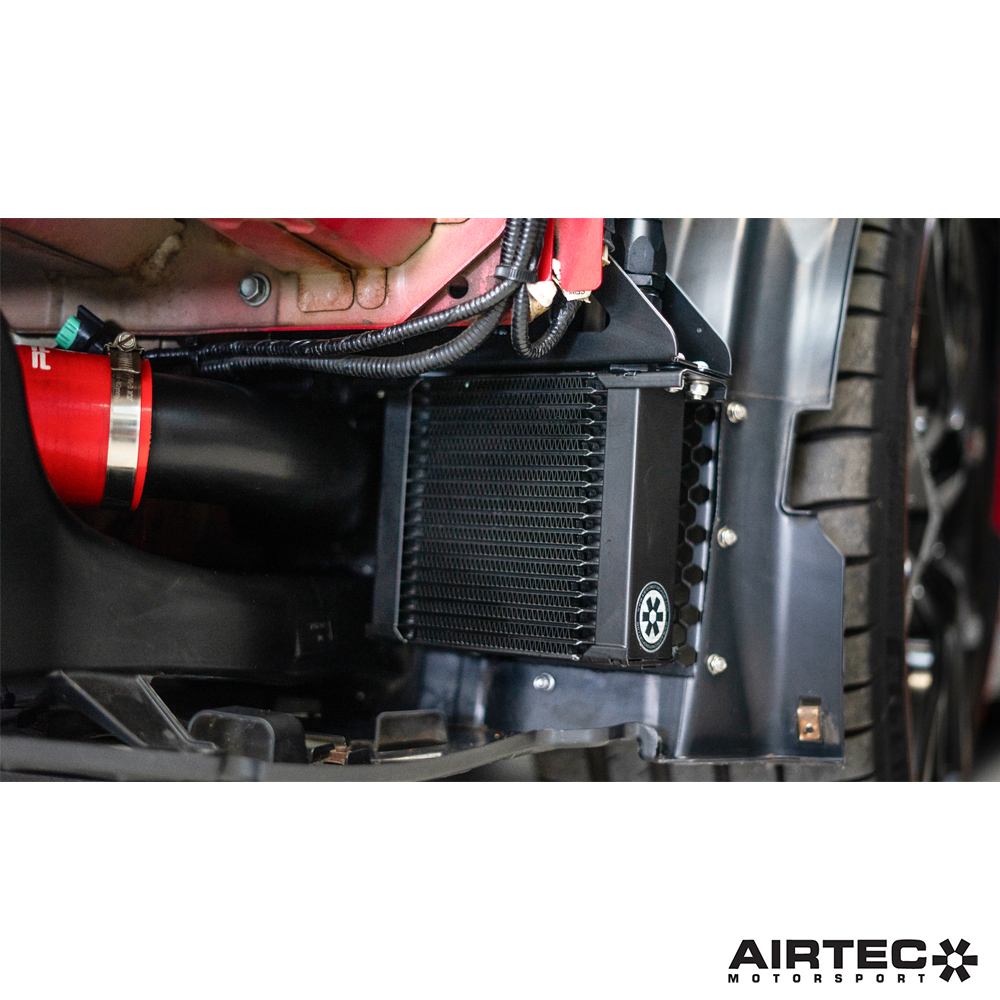

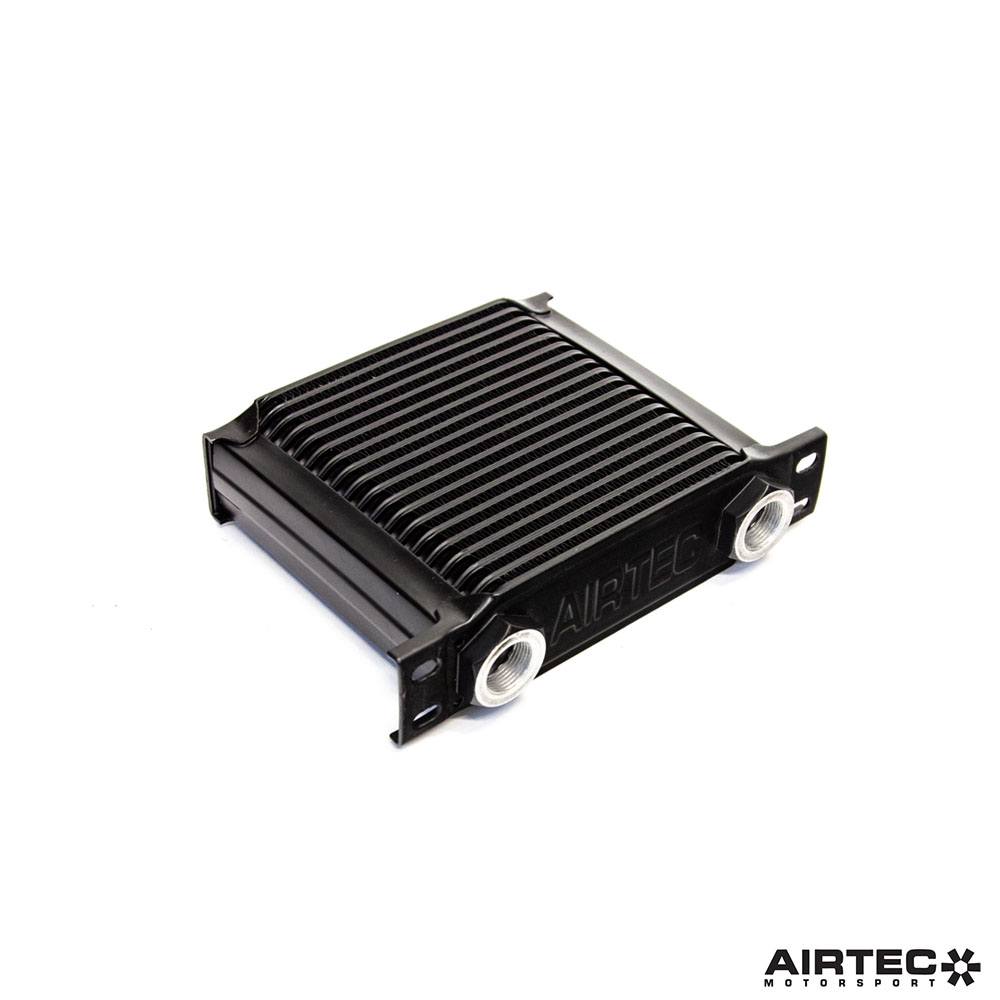

Developed in-house at AIRTEC HQ in the UK we designed an oil cooler to help address the cooling issues when pushed hard. This cooler fits neatly behind the fog light (requires removal) and utilisesour bespoke CAD-modelled air ductto force cold air through the core. To create a flow path and further improve cooling, air then exits via the inner arch liner (requires cutting). A pre-cut mesh shield is supplied for both the front and rear to protect the radiator from road debris damage.

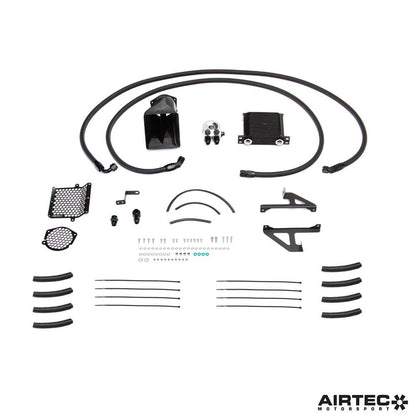

This can fit with our intercooler, replacement inspection panel and auxiliary radiator/turbo cooler to create the ultimate cooling package. The comprehensive kit also features laser-cut and powder-coated brackets, high-quality braided lines with AN fittings as well as all fixtures and fittings, and detailed fitting instructions.

Tested on Track
20th June 2025 -Cadwell Park Circuit
Test car fitted with air filter and Stage 1 remap producing a dyno proven 375bhp
Fitted withAIRTEC Motorsport oil coolerandAIRTEC Motorsport auxiliary radiator/turbo cooler
Oil temperature data logged to indicate overall operating temperature via OBD port using Torque Pro app data recording and downloaded to PC.

Run 1-10.00am -Ambient Temperature:24°C-15 minute session -Maximum Oil Temperature:106°C
Run 2-10:45am -Ambient Temperature:25°C-20 minute session -Maximum Oil Temperature:112°C
Run 3-11:30am -Ambient Temperature:27°C-15 minute session -Maximum Oil Temperature:112°C
Run 4-12:00pm -Ambient Temperature:28°C-20 minute session -Maximum Oil Temperature:114°C
Run 5-2.00pm -Ambient Temperature:29°C-15 minute session -Maximum Oil Temperature:118°C
Run 6-2:45pm -Ambient Temperature:30°C-20 minute session -Maximum Oil Temperature:117°C
Run 7 -3:30pm -Ambient Temperature:28°C-15 minute session -Maximum Oil Temperature:113°C

Driver Comments:
"This was an extremely hot day and car coped very well. Before the auxiliary radiator and oil cooler were installed I would normally get approximately 5 to 6 laps, which is about 8 to 10 minutes of hard use before the oil temperature rose to around the 126 to 128°C. With the coolers installed, I can run at least 10 to 14 laps, which is over 20 minutes of hard use, and oil temperatures don't normally go above 115°C.

Also a major advantage is that I can repeat that all day long, whereas before I found that once the temperature of the oil got really hot it would normally not cool down enough for the rest of the day, so it meant I ended up doing only 3 to 4 laps before the temperature rose again, as the oil never fully cooled down and seemed to heat back up quicker."

Please note:
-This is a motorsport product and you may notice an increase in engine harmonics through the cabin when fitted.

Features:

• Designed and developed specifically for the FK2 Civic Type R
• Improves oil cooling ability -tested on track and proven to work

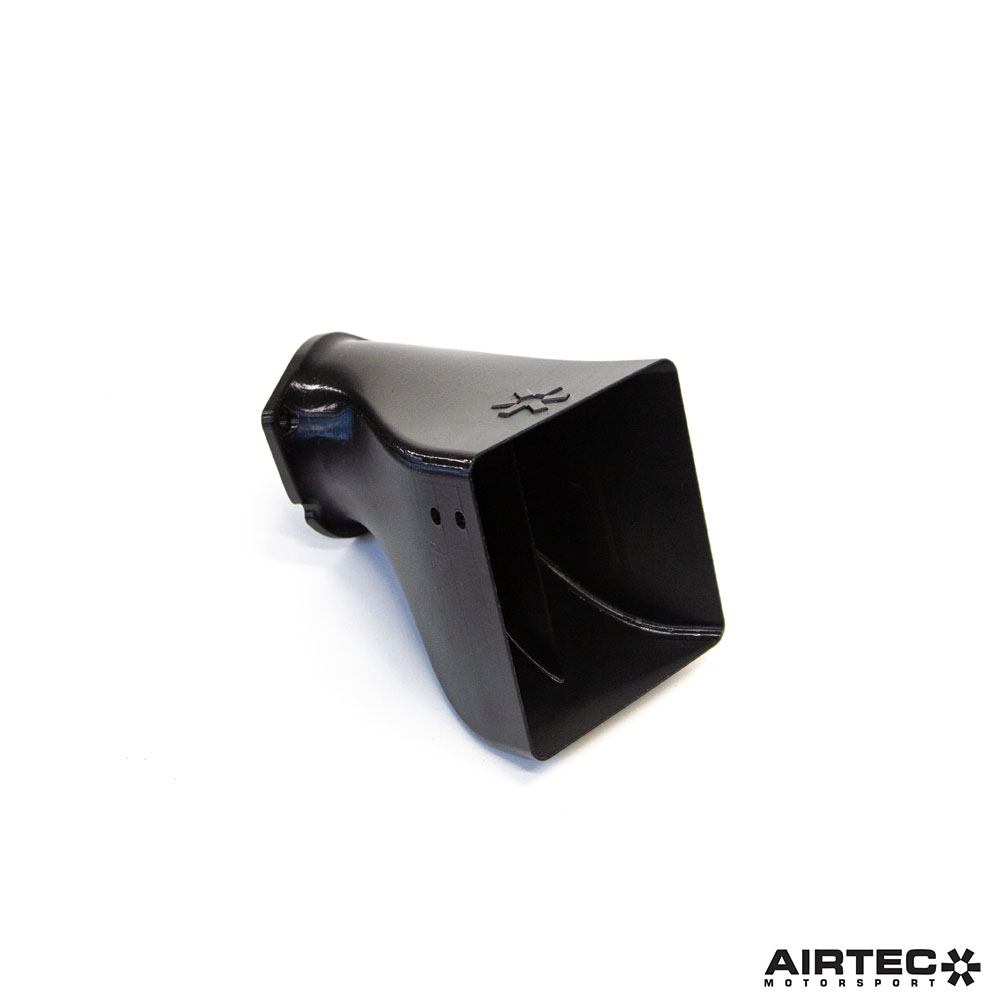

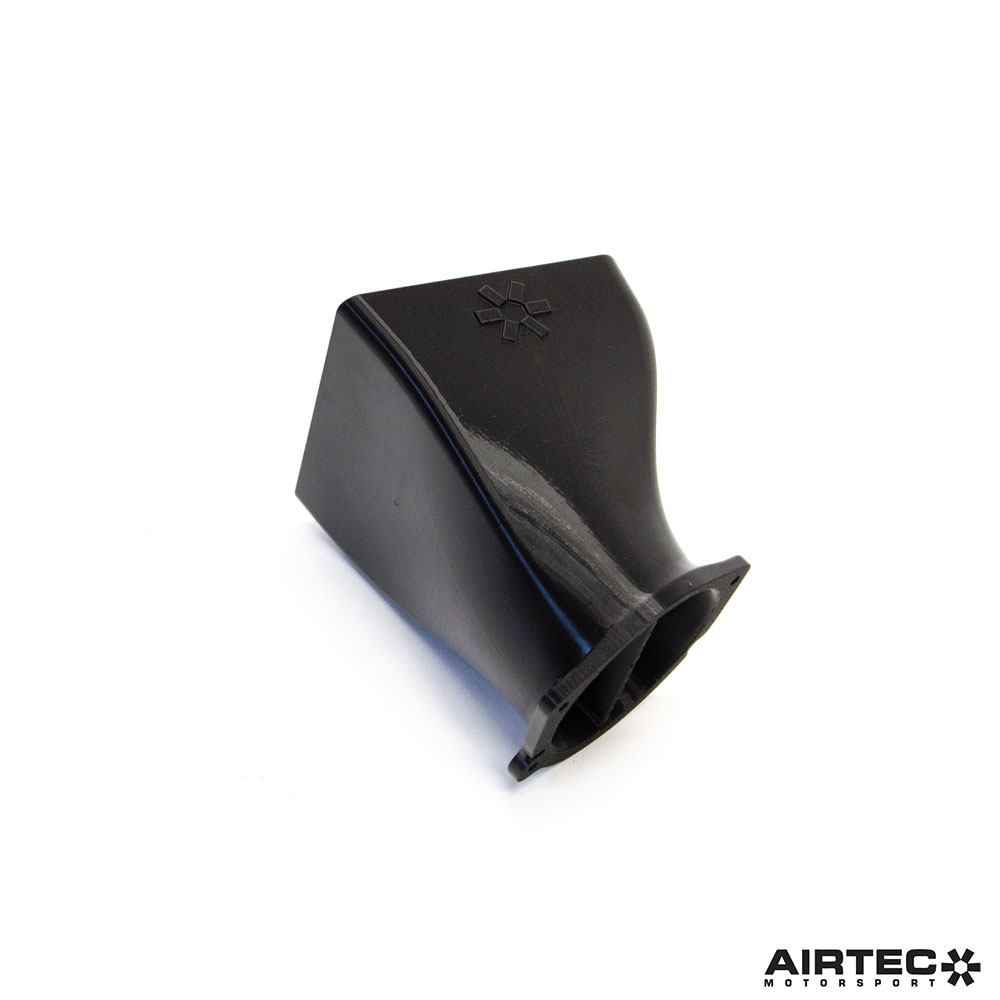

• Utilisesour bespoke CAD-modelled air duct
• Ducting channels air in and allows it to exit via arch liner
• Bespoke laser-cut and powder coated brackets
• High-quality braided lines with AN fittings
• Fits with our intercooler and auxiliary radiator/turbo cooler kit to create the ultimate cooling package

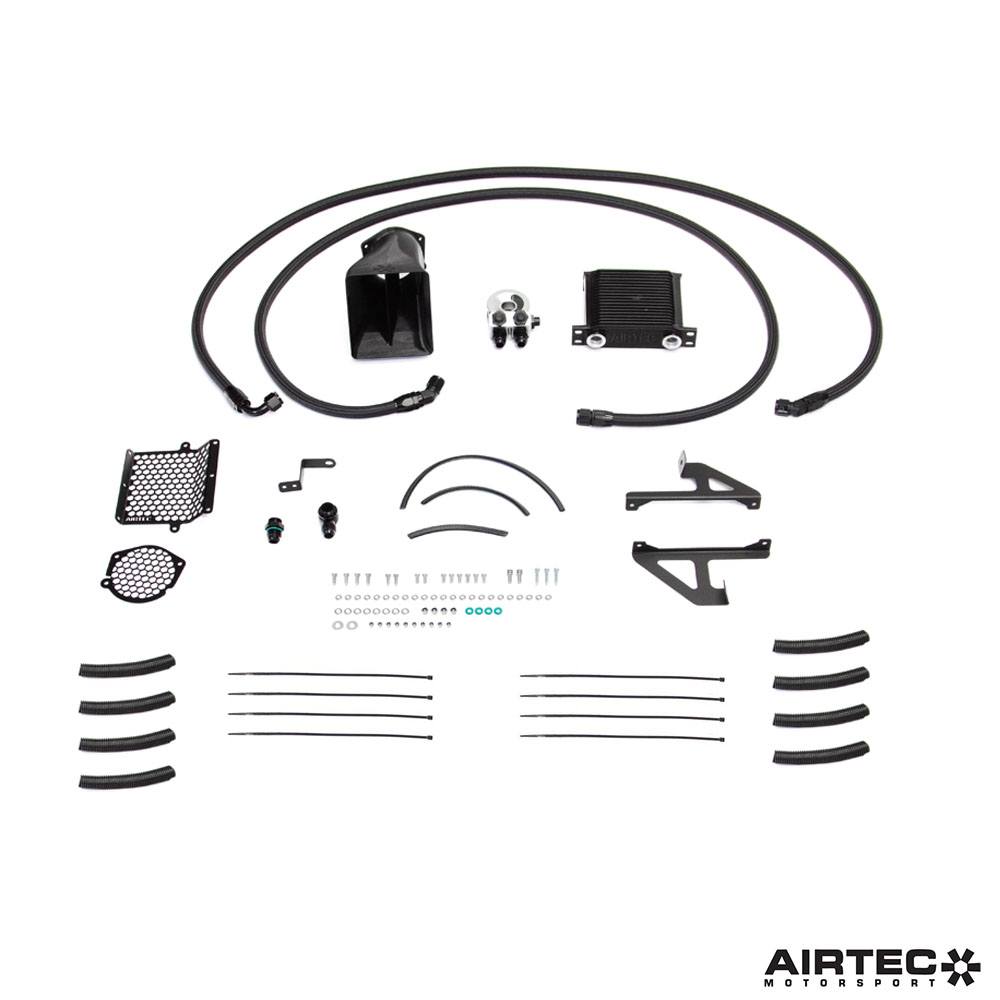

• Comprehensive kit with all fixtures, fittings and instructions

Feel free to contact us at info@mlperformanceeu.com should you wish to double check!

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

AIRTEC-ATMSHON7
